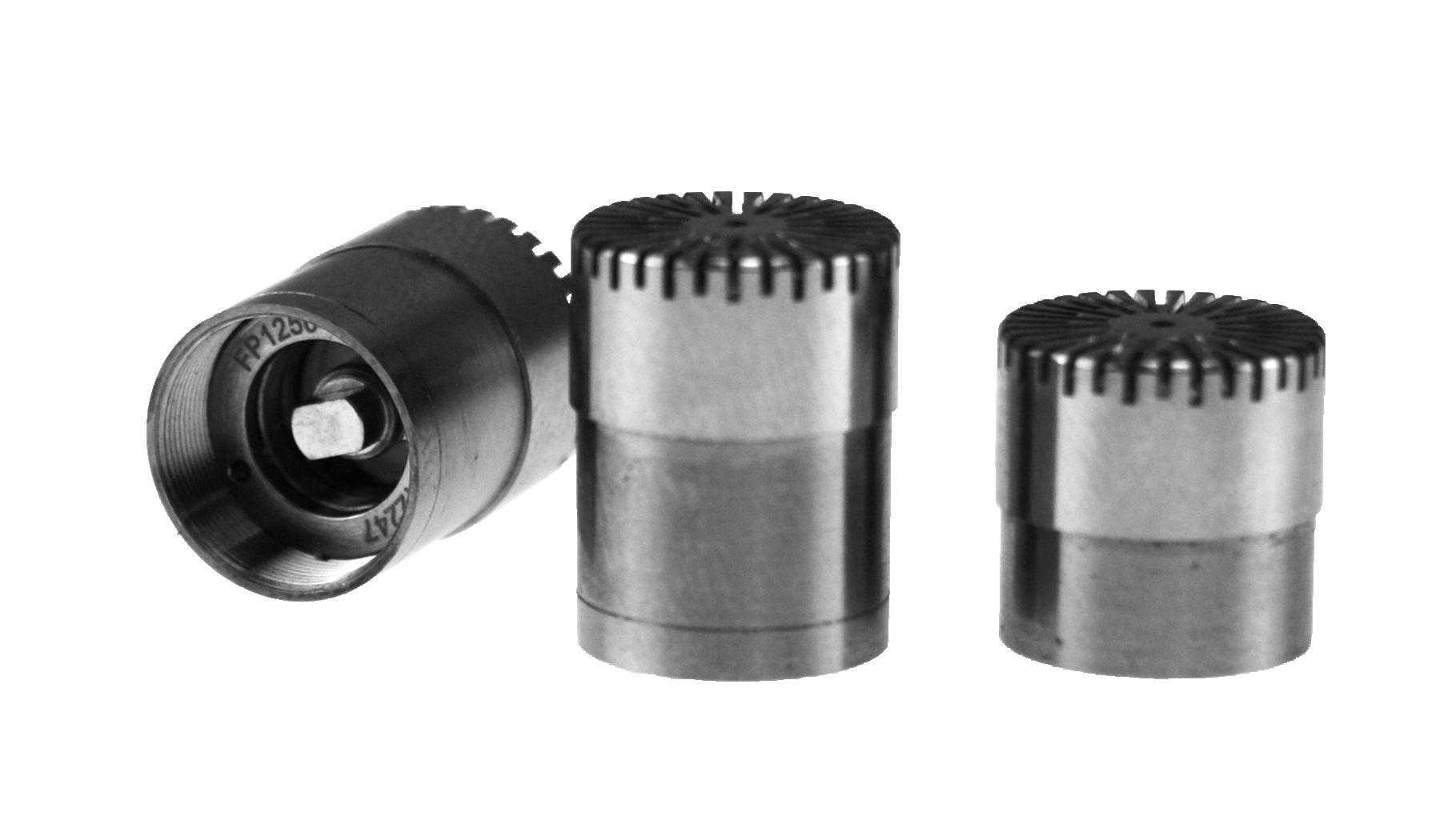

FP Series Microphone Capsule



The iSEMcon FP Series are high-precision microphone capsules and manufactured in compliance with the IEC 61094-4 requirements and classified as a class 1.

Frequency Range: 20Hz to 40kHz nominal or 20 Hz to 20kHz nominal
Dynamic Range: 25 to 155 dB(A)
Nominal Sensitivity: 12mV/Pa or 50mV/Pa

The FP series microphone capsules are optimized for free-field measurements.






Technical data capsule FP-1212



type (IEC 1094-4)

WS2F

Field Type

freefield

nominal capsule size

½“

frequency range (typ)

20...40kHz nominal

capsule sensitivity (open circuit, typ.)

12mV

dynamic range (3% dist, typ)

25...155dB

polarization voltage

0V

Diameter, max.

13.2mm

height

12.3mm

selfnoise

25dB(A)

Operating Temperature Range

 -30°C…90°C

Temperatute Coefficient

< -0.012 dB/℃ (at 250Hz, -10 ~ 50 °C;)

Humidity Coefficient

< 0.001 dB/% (at 250Hz, 0 ~ 98 %RH)

Pressure Coefficient

< -0.01 dB/kPa (at 250 Hz, 65 kPa – 108 kPa )
